class: center, middle

# Actix and Actors in Rust

##### Nathan Hawkins

---
# Actix Overview

- Actix is a Rust library for concurrent programming that is loosely based on the actor model
- Provides a framework for passing typed messages between actors
- Actors may run in multiple threads
- Allows synchronous and asynchronous actors to coexist and communicate by passing messages

---

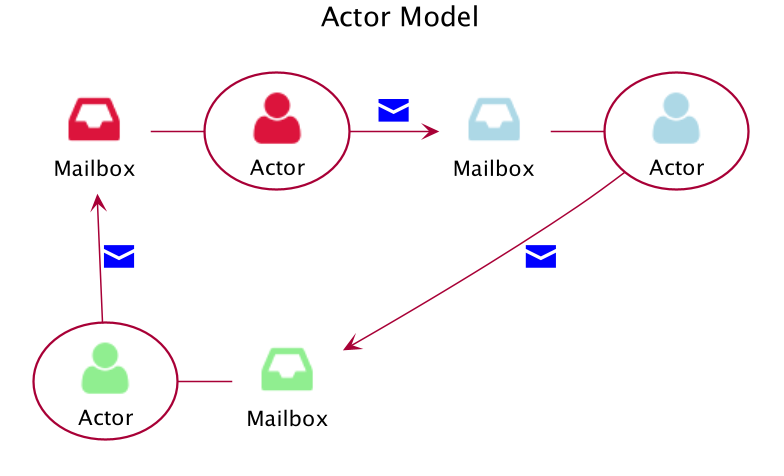

# Actor Model

- The actor model is a conceptual model for distributed and concurrent programming
- An **actor** is a thing that receives **messages** and does some computation based on them
- Messages are delivered to a **mailbox**, which generally acts as a queue for the actor

---
![](actor_model.png)
---
# Actor Behavior
- In response to a message that it receives, an actor may:
    - Create more actors
    - Send more messages
    - Decide how to respond
    - Do internal things with the actor's own state

---
# What's an Actor in Actix?

- Implements the `actix::Actor` trait
- Primarily this simply means handling messages
- Associated with a mailbox and an address

---
# Messages

- A message can be any Rust type which implements the `actix::Message` trait
- Which messages an actor can receive is static
    - An Actor has to provide a `Handler<Message>` implementation for each type of message it can receive
    - Messages have associated `Result` types
- Mailboxes are bounded (16 messages by default)

---
# Example: Ping Message

```rust
use std::io;
use actix::prelude::*;

struct Ping;

impl Message for Ping {
    type Result = Result<bool, io::Error>;
}
```

---
# Example: Ping Actor

```rust
// Define actor
struct MyActor;

// Provide Actor implementation for our actor
impl Actor for MyActor {
    type Context = Context<Self>;
}

// Define handler for `Ping` message
impl Handler<Ping> for MyActor {
    type Result = Result<bool, io::Error>;

fn handle(&mut self, msg: Ping, ctx: &mut Context<Self>)
         -> Self::Result {
        println!("Ping received");

Ok(true)
    }
}
```

---
# Arbiters and Contexts

- Actix provides two controllers
- `Arbiter` runs a Tokio event loop
  - Works with `Context`, which provides a Future based implementation of Actor
- `SyncArbiter` runs a thread pool and multi consumer queue
  - Has an associated `SyncContext`

---
# SyncArbiter

- `SyncArbiter` runs synchronous actors on a thread pool
- Only one sync actor runs within each thread
- Sync actors use `SyncContext` instead of `Context`
- This means actors are statically typed as either sync and async

---
# So what can you do with this?

- Sync and async actors can send messages between threads
- Sync code can be written in simple, linear style
- Async code doesn't block, it can wait on a Future
- Actix makes it possible to compose sync and async code

---
# Actix-Web

- Async web framework built on top of Actix
- Runs on stable, __does not require nightly Rust__
- Supports HTTP 1.x and 2.0
- Websockets
- Transparent compression
- SSL
- Request routing
- Middlewares

---
# Actix-Web Hello World

```rust
extern crate actix_web;
use actix_web::{App, HttpServer, Path};

fn index(info: Path<(String, u32)>) -> String {
    format!("Hello {}! id:{}", info.0, info.1)
}

fn main() {
    HttpServer::new(
        || App::new()
            .resource("/{name}/{id}/index.html", |r| r.with(index)))
        .bind("127.0.0.1:8080").unwrap()
        .run();
}
```

---
# Actix-Web is an Actor

- `actix_web::HttpServer` is an Actix Actor
- HTTP request handlers can be async functions, or can be Actors themselves
- Web applications can be embedded within larger systems of Actors
- Other components, such as database code or file I/O, can simply run in synchronous Actors

---
# Working Example

https://github.com/utsl42/actix-test

Demo using:

- Actix
- Actix-Web
- MTBL - constant database C library
- Slog - structured logging library
- Tera - HTML templates
- Serde - serialization/deserialization

---
# actix-test Message Flow

![](actix_test_sequence.png)
